C 1006 Patio Door Surface with Clamp Latch, Black, Extruded Aluminum

Prime-Line Products

SKU: 100261

  • Inside Handle is Black Extruded Aluminum.
  • Inside Handle Height is 2 inches
  • Outside Handle is Black Extruded Aluminum

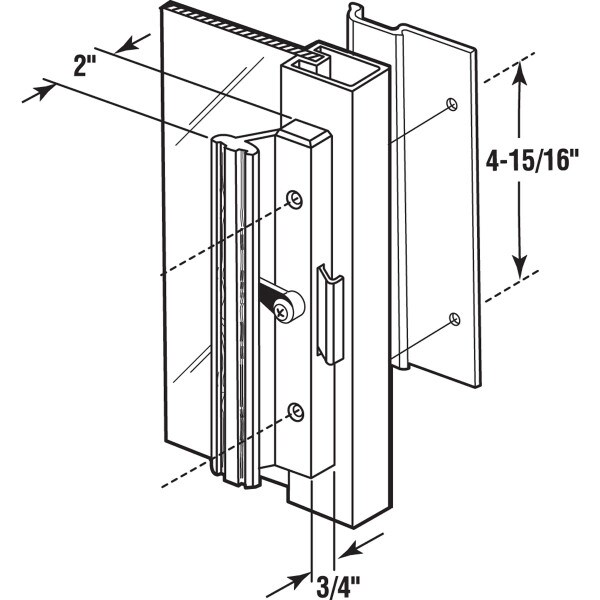

  • 4-15/16 inch mounting holes
  • Non-Handed
  • Non-Keyed
  • Clamp latch has a 1/4 inch profile and 1/2 inch projection
  • Used by many Patio Door Manufacturers

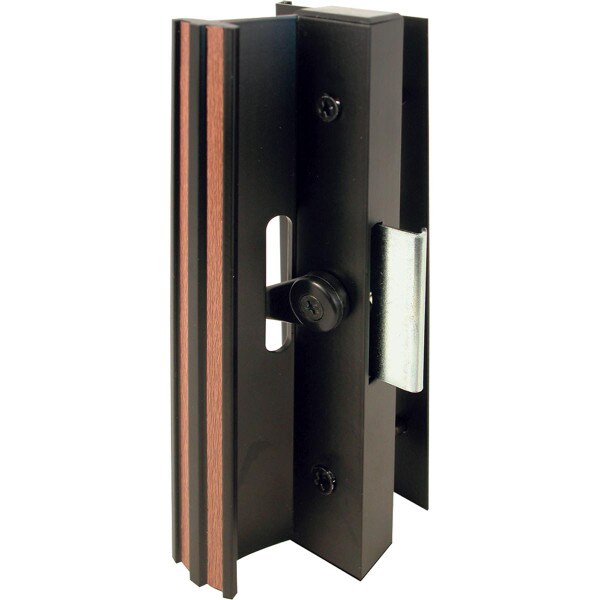

This Black patio door handle is a surface with clamp latch style. Often found on older style patio doors, it is mounted on the door's inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 inch handle height extruded aluminum inside handle. The clamp has a 1/4 inch profile and 1/2 inch projection when in locked position. The outside handle is a Mill Finish low profile non-keyed handle. To key this unit, you can use  the Prime-Line E 2071 lock cylinder.
