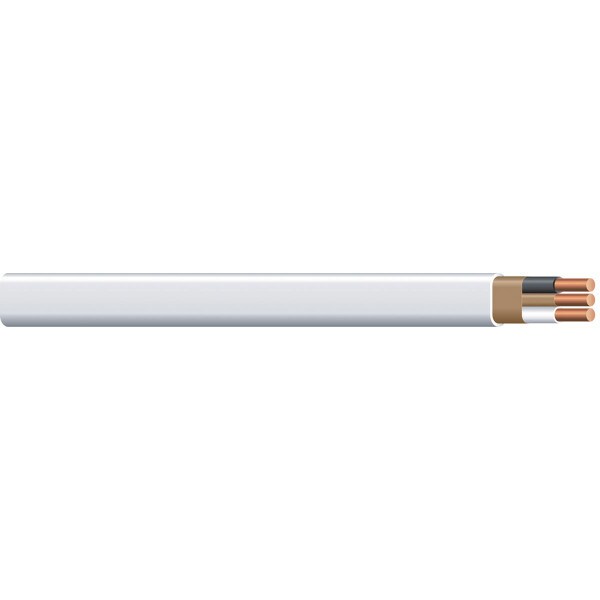

142 AWG Romex SIMpull 50 ft. Nonmetallic-Sheathed Cable
Details
- Nonmetallic-sheathed cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 degreesC with ampacity limited to that for 60 degreesC conductors
- Primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- May be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 volts
- Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544, and requirements of the National Electrical Code
- White jacket
- 2 conductor design
- 14 AWG
- 19 mils insulation and jacket thickness
- 57 lb per 1000' per lb
- 15 allowable ampacity
- 360 X 162 mil cable dimension
- 50'
