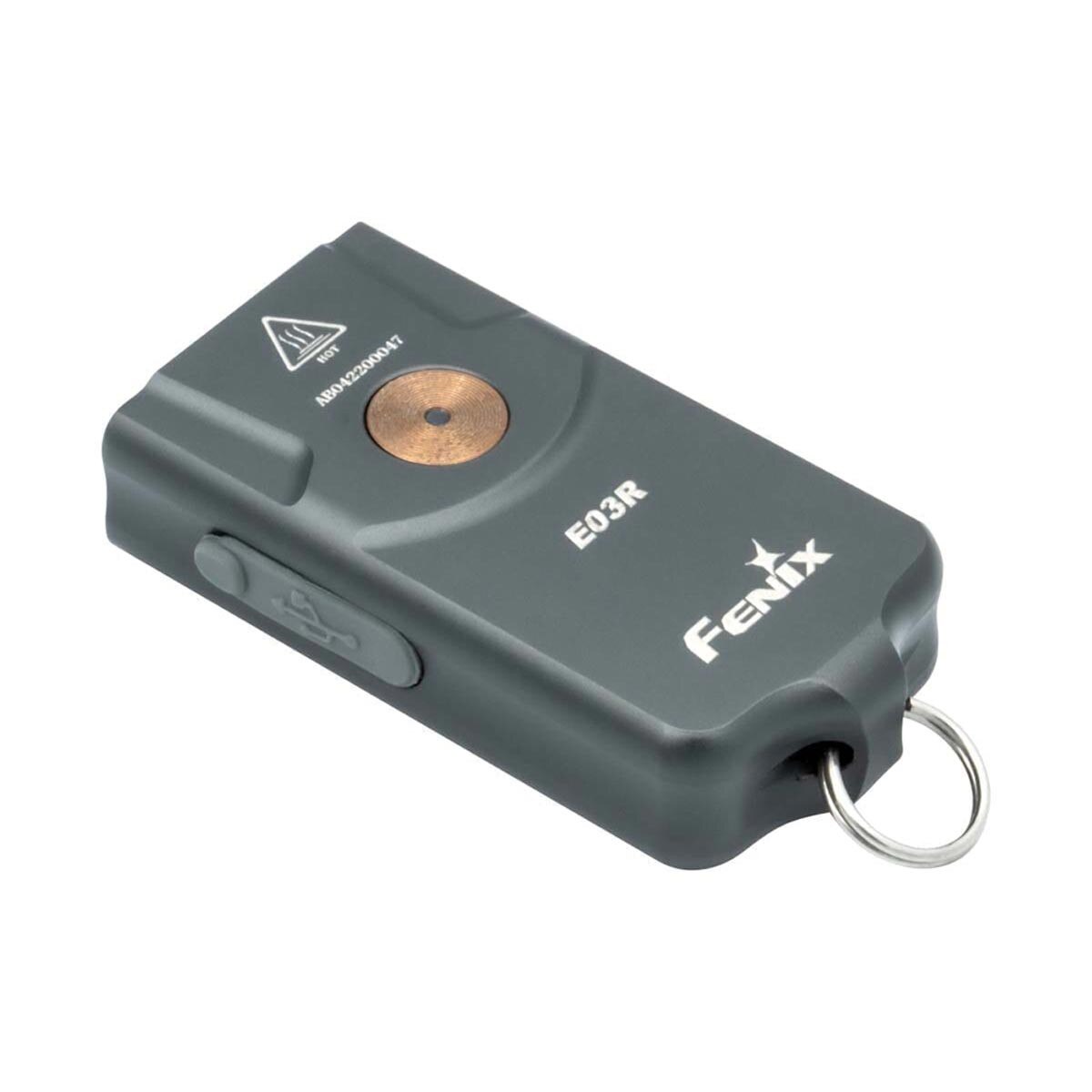

Fenix E03R 260 Lumen LED Keychain Flashlight with USB Rechargeable Battery

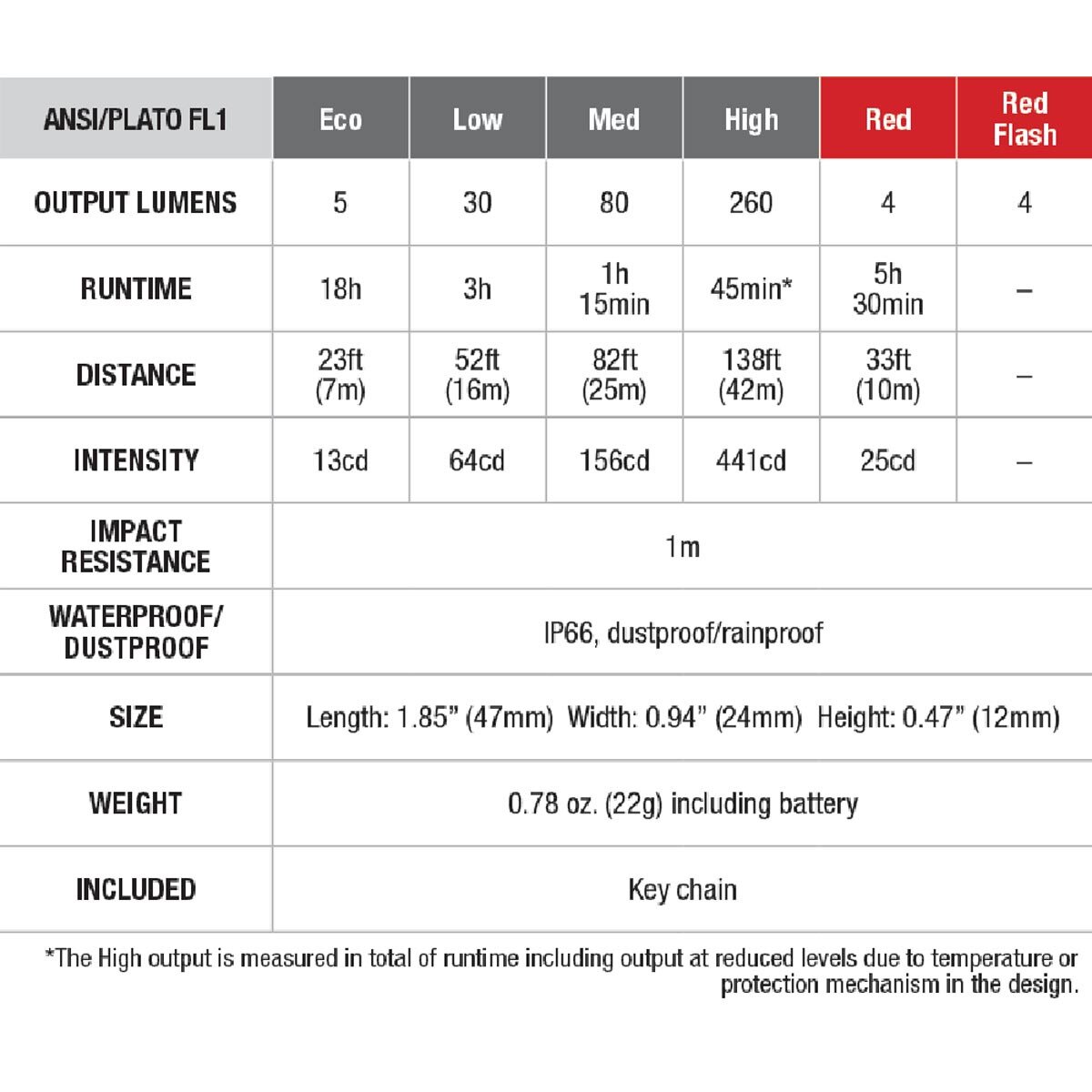

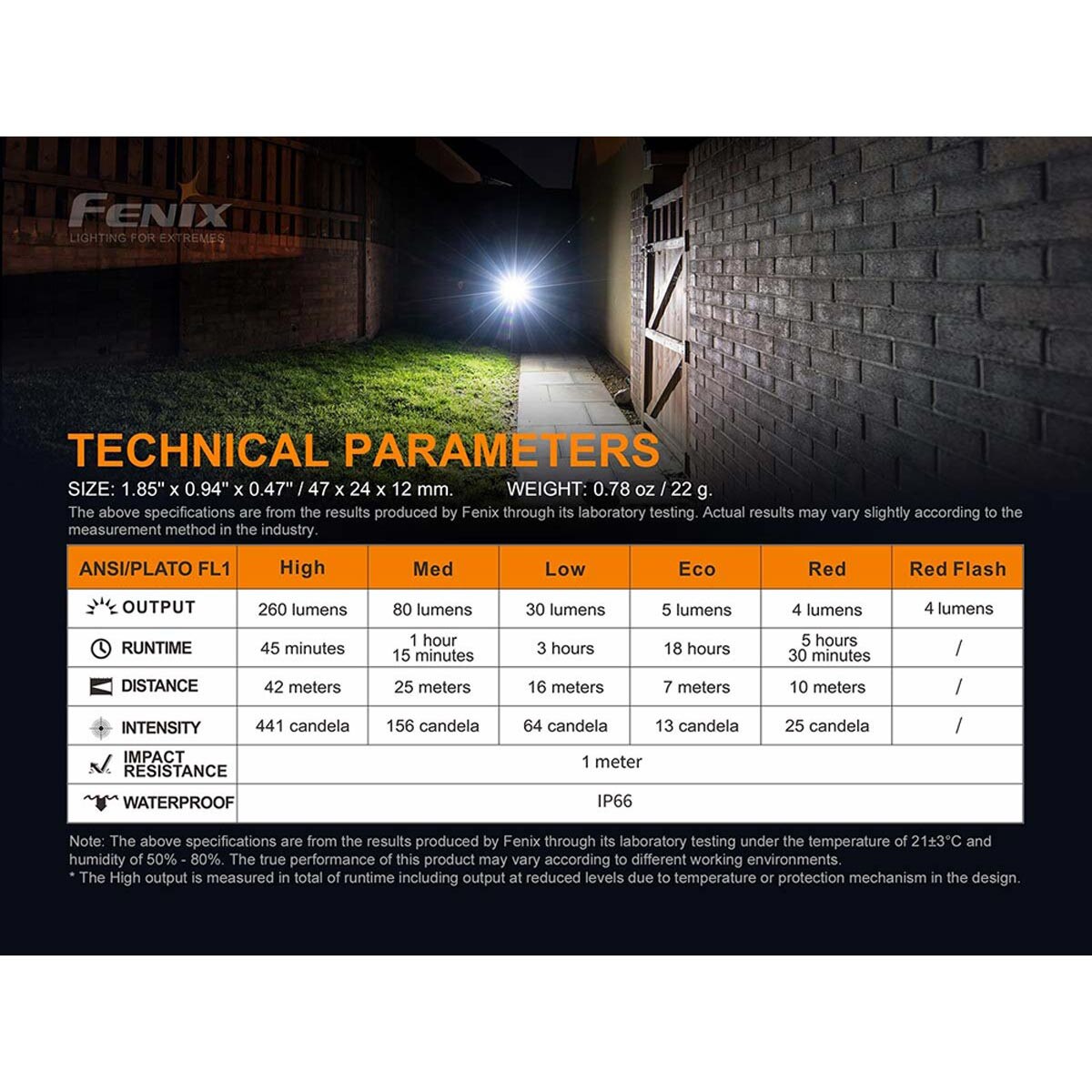

The Fenix E03R rechargeable keychain flashlight will produce a maximum 260 lumens and throw the light a distance of 138ft (42m). The top switch operates on/off and allows you to select from six lighting modes, including four brightness levels plus red light and red flashing. The battery level indicator lets you know when the battery needs charging. Quickly recharge the built-in battery via the USB Type-C charging port. At less than 2? long, not only is it the perfect everyday carry size, but it is rugged too with an IP66 rated splashproof and dustproof rating. Keep this light on your keys, in a pocket, or in a drawer to always have a flashlight at your fingertips. The E03R would even make a great gift that person in your life that you know should have a bright light handy at all times, but that you can't convince to carry a full sized flashlight. Astonishingly bright for its small size, we know the Fenix E03R will become an instant favorite keychain flashlight.

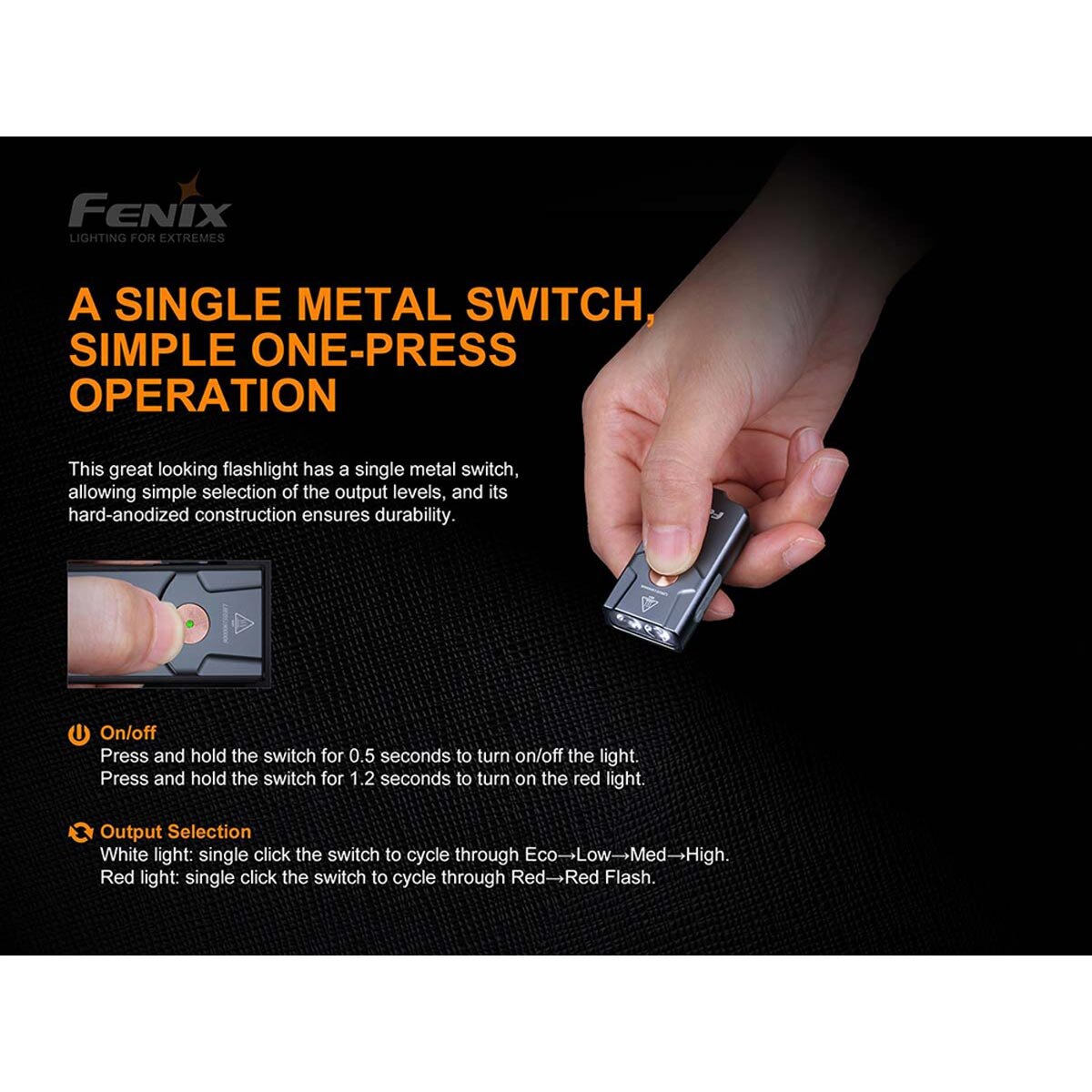

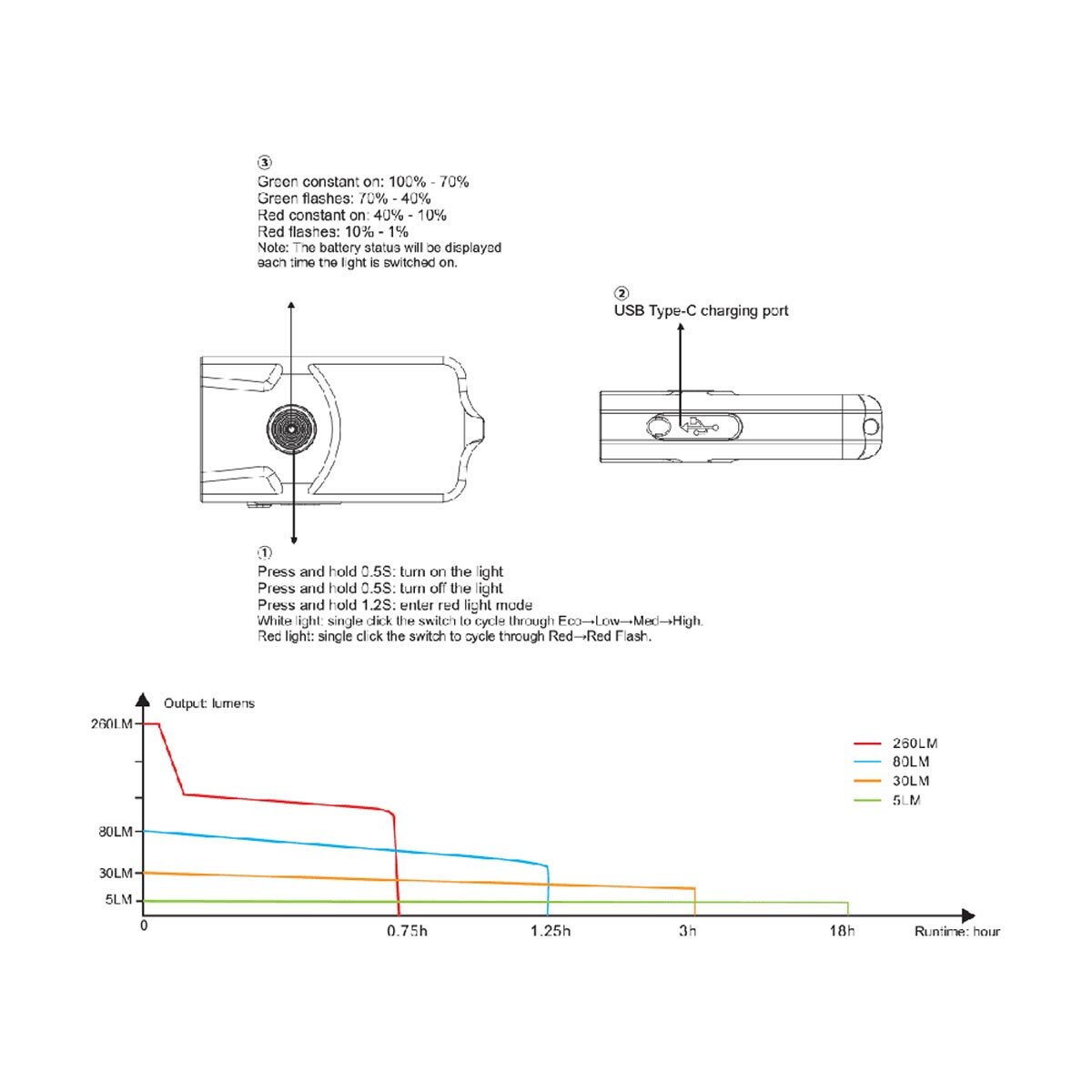

On/Off

• Press and hold the switch for 0.5 seconds to turn on/off the light.
• Press and hold the switch for 1.2 seconds to turn on the red light.

Output Selection for Keychain Flashlight

• White light: single click the switch to cycle through Eco-->Low-->Med-->High.
• Red light: single click the switch to cycle through Red-->Red Flash.

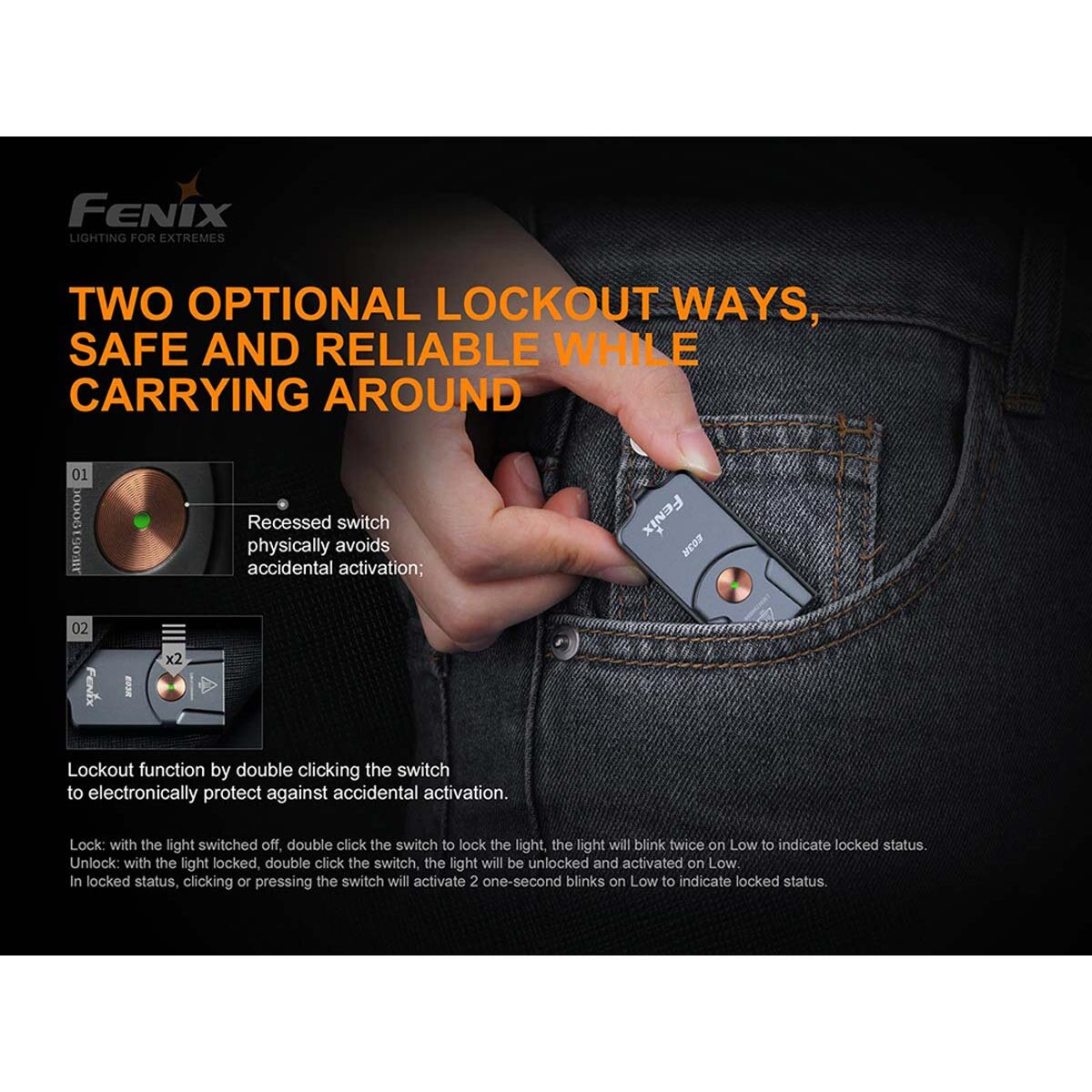

Lock/Unlock

• Lock: with the light switched off, double click the switch to lock the light, the light will blink twice on Low to indicate locked status.
• Unlock: with the light locked, double click the switch, the light will be unlocked and activated on Low.
• In locked status, clicking or pressing the switch will activate 2 one-second blinks on Low to indicate locked status.

Charging Your Keychain Flashlight

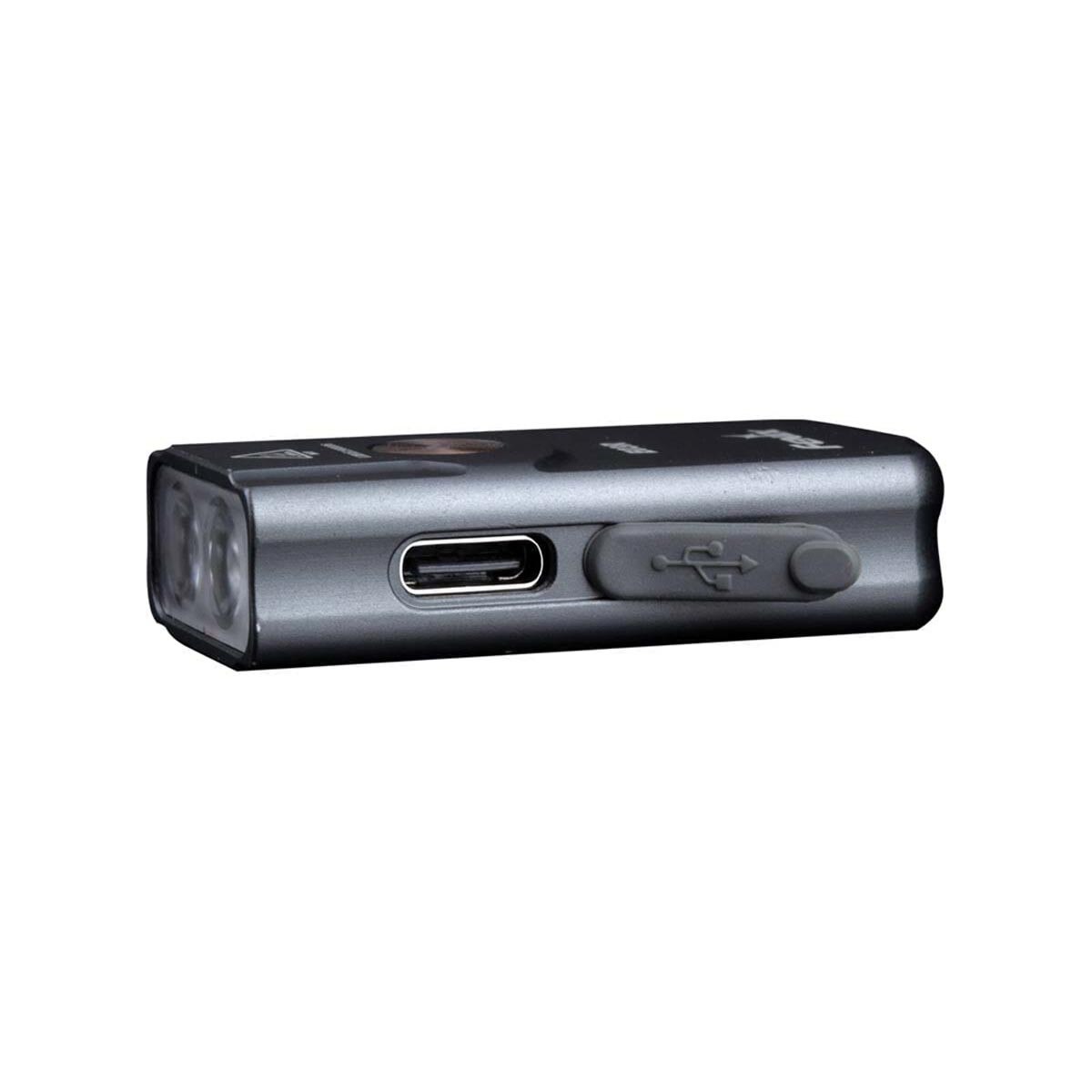

1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging, and will turn to green when fully charged.
3. Once charging is completed, be sure to close the anti-dust cover.

Note:

• The normal charging time is approximately 1 hour and 20 minutes from depletion to full charging.
• Recharge a stored light every four months to maintain optimum performance of the battery.

Battery Level Indication

With the light switched off, single click the switch to check the battery status. The battery level indicator will display the battery status for 3 seconds.

• Green constant on: saturated (100% — 70%)
• Green flashes: sufficient (70% — 40%)
• Red constant on: poor (40% — 10%)
• Red flashes (2Hz): critical (10% — 1%)
• Note: The battery status will be displayed each time the light is switched on.

Intelligent Protection

The light will accumulate a lot of heat when used on High output level for extended periods. To reduce the temperature, the light will automatically step down a few lumens. High output level can be reselected if needed.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens on Eco output mode, the battery level indicator blinks red to remind you to recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery is depleted.
