Fenix LD30 1600 Lumen Dual Power LED Flashlight with USB Rechargeable Battery

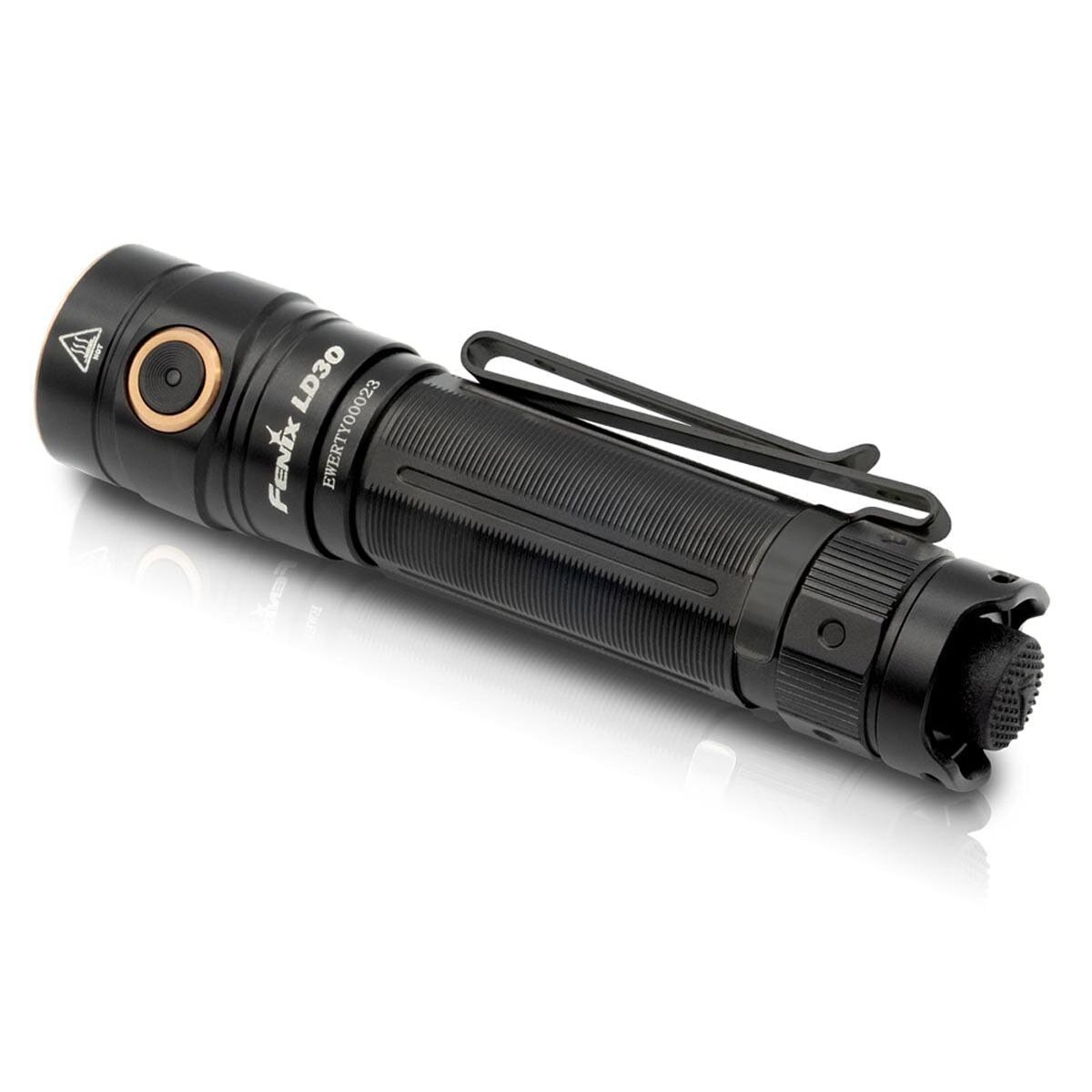

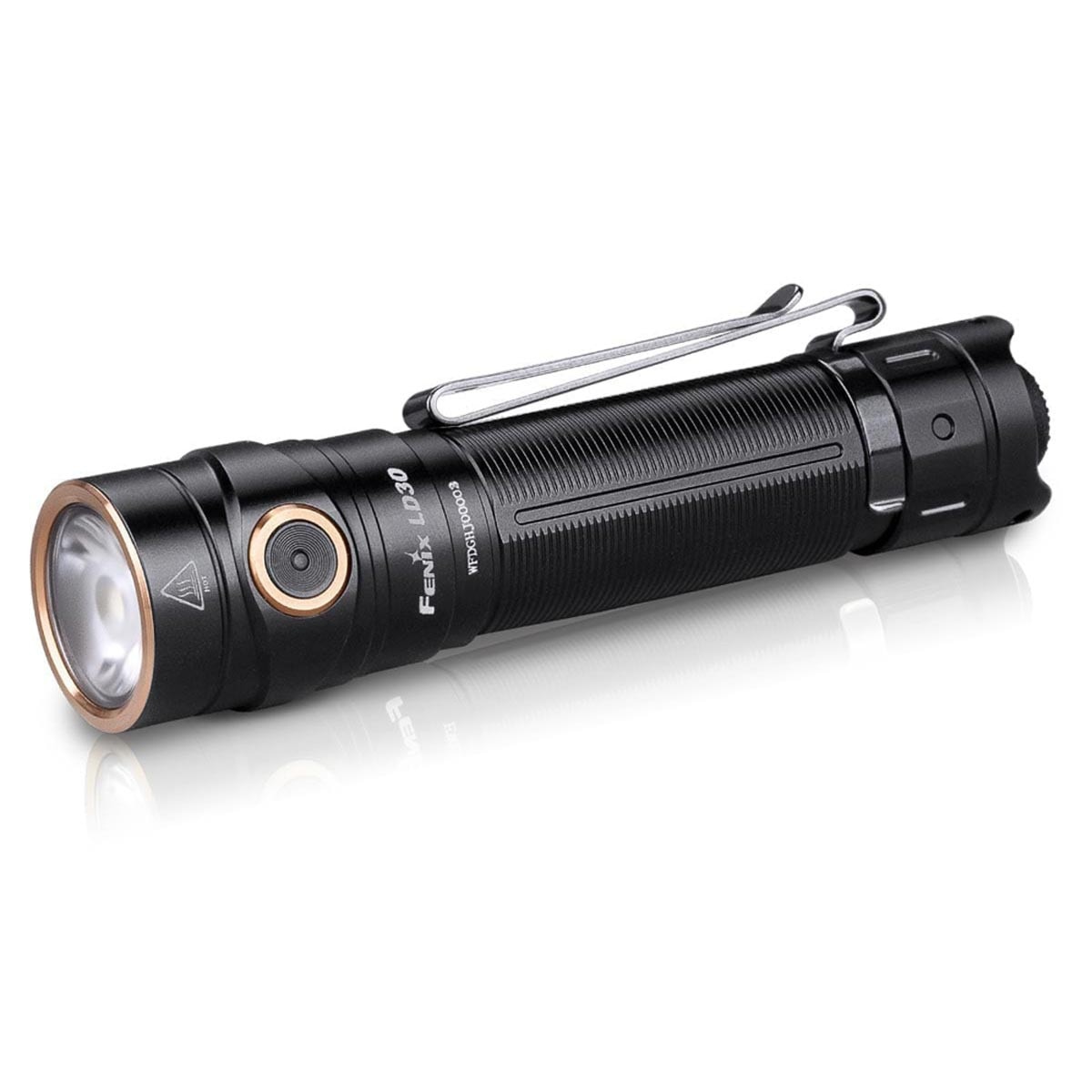

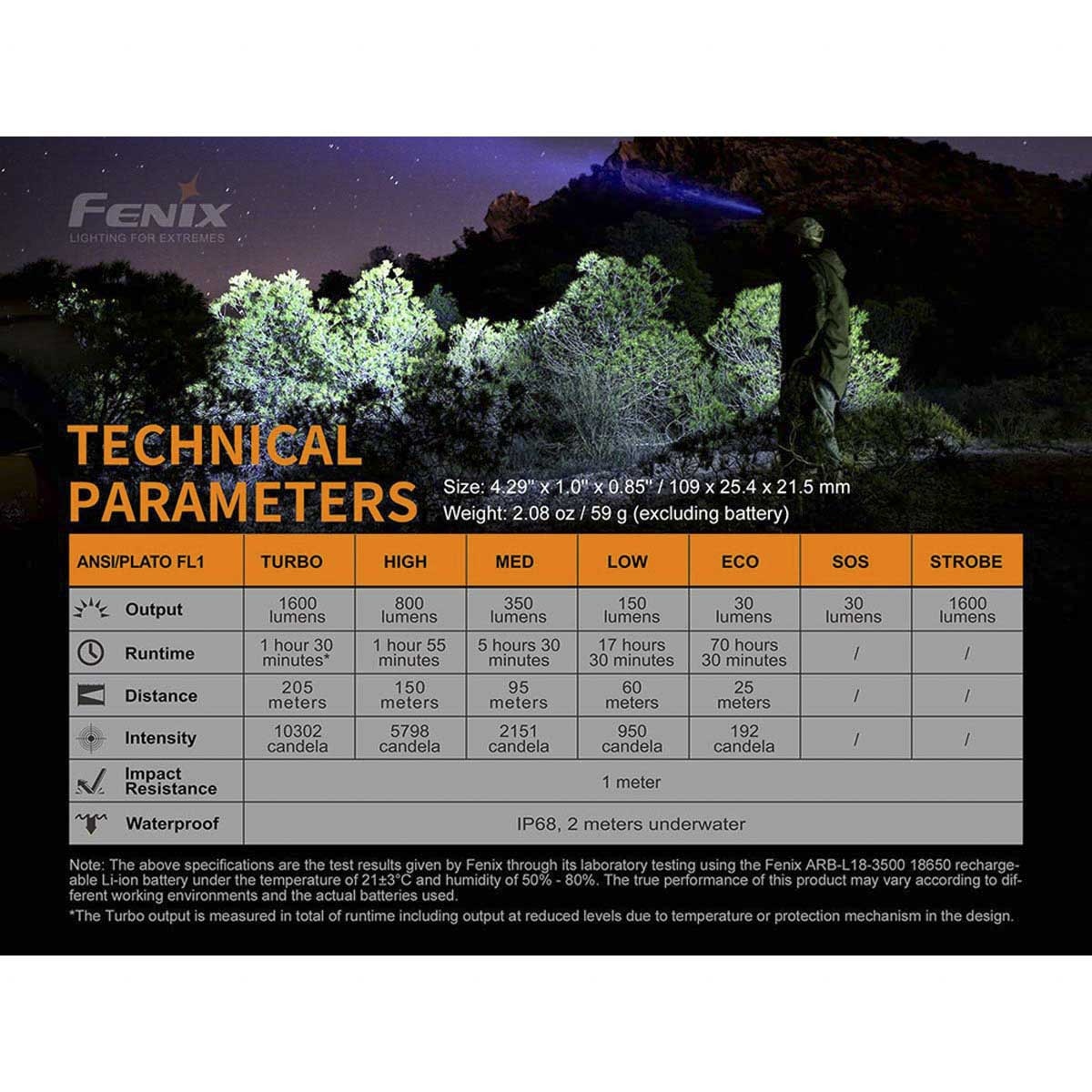

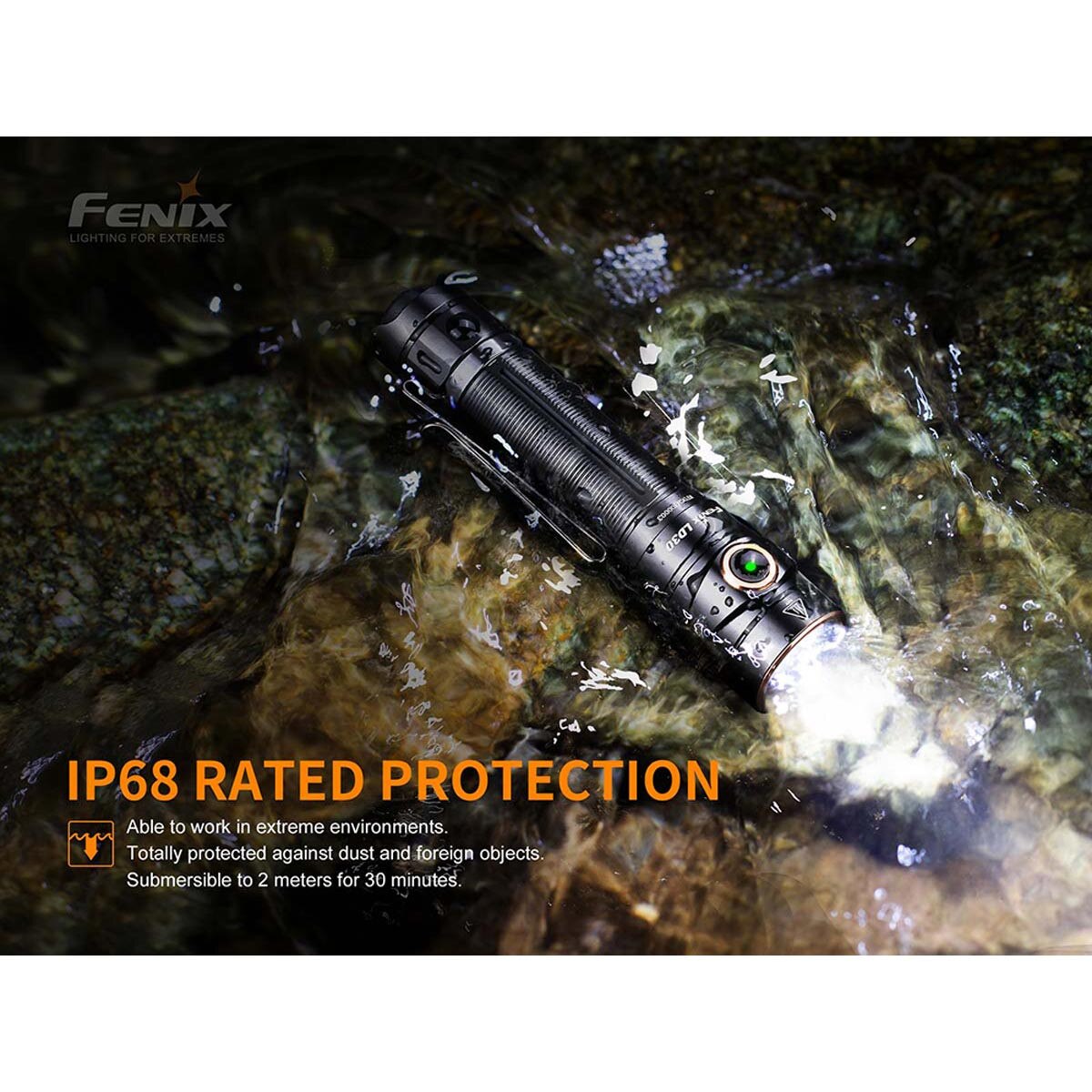

The Fenix LD30 is an extremely powerful compact flashlight that can blast a maximum 1600 lumens, 673 feet (205 meters). At only 4.3" long, the LD30 is the perfect size everyday carry EDC flashlight. Quickly activate the flashlight with its tactical tail switch and then cycle through the lighting modes with the side switch. The LD30 flashlight is powered by one 18650 li-ion battery or two CR123As. Other features include a two-position body clip, battery level indicator, and it is IP68 rated waterproof/dustproof.

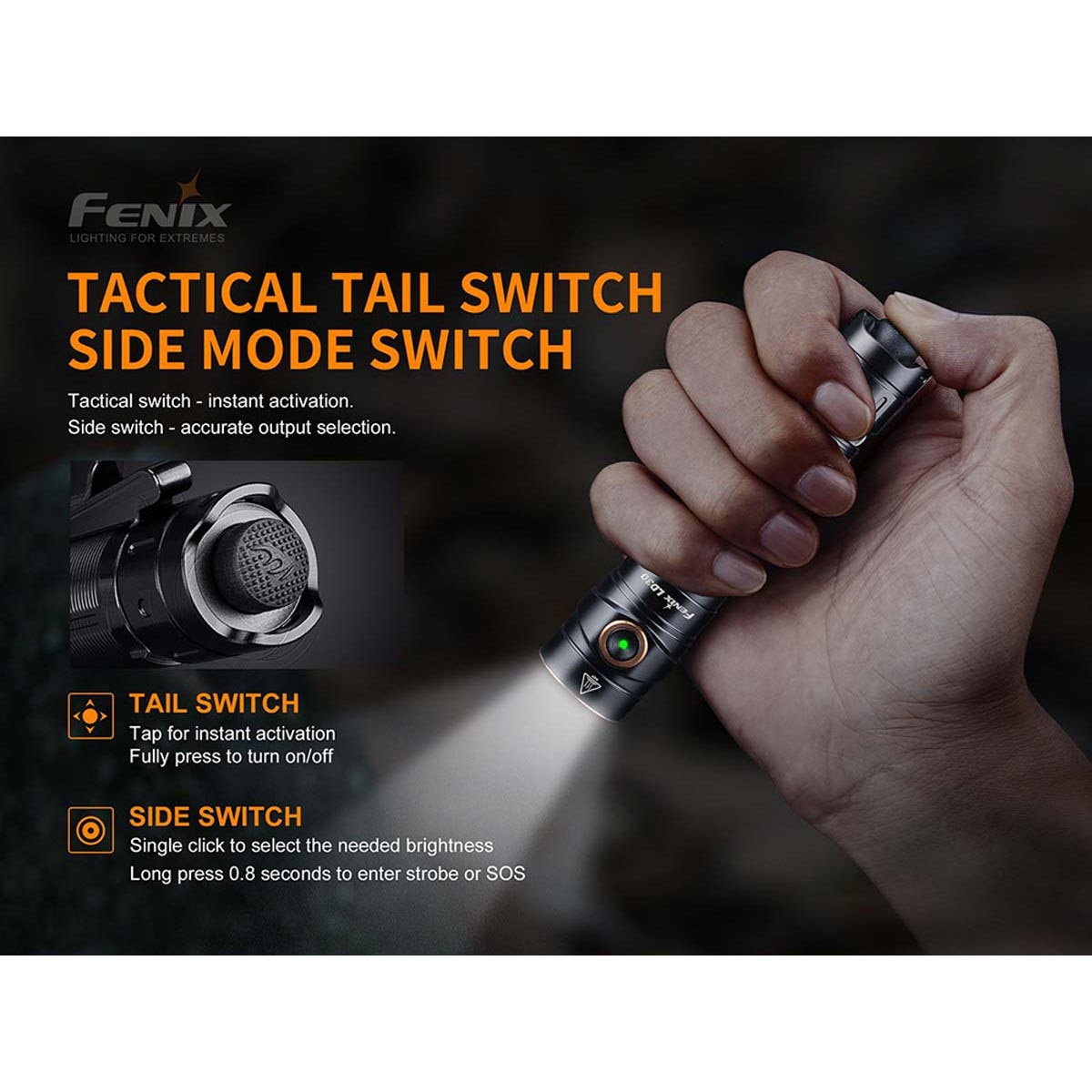

On/off and lock/unlock

Press the tactical tail switch to turn on and lock the flashlight, release it the light will be turned off and unlocked.

Output Selection

With the light switched on, single click the side switch to cycle through Eco-->Low-->Med-->High-->Turbo.

Strobe and SOS

With the light switched on, press and hold the side switch for 0.8 seconds to enter strobe, single click the side switch to cycle through Strobe-->SOS, press and hold the side switch for 0.8 seconds once again to return back to the previously used output level.

Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output will be recalled.

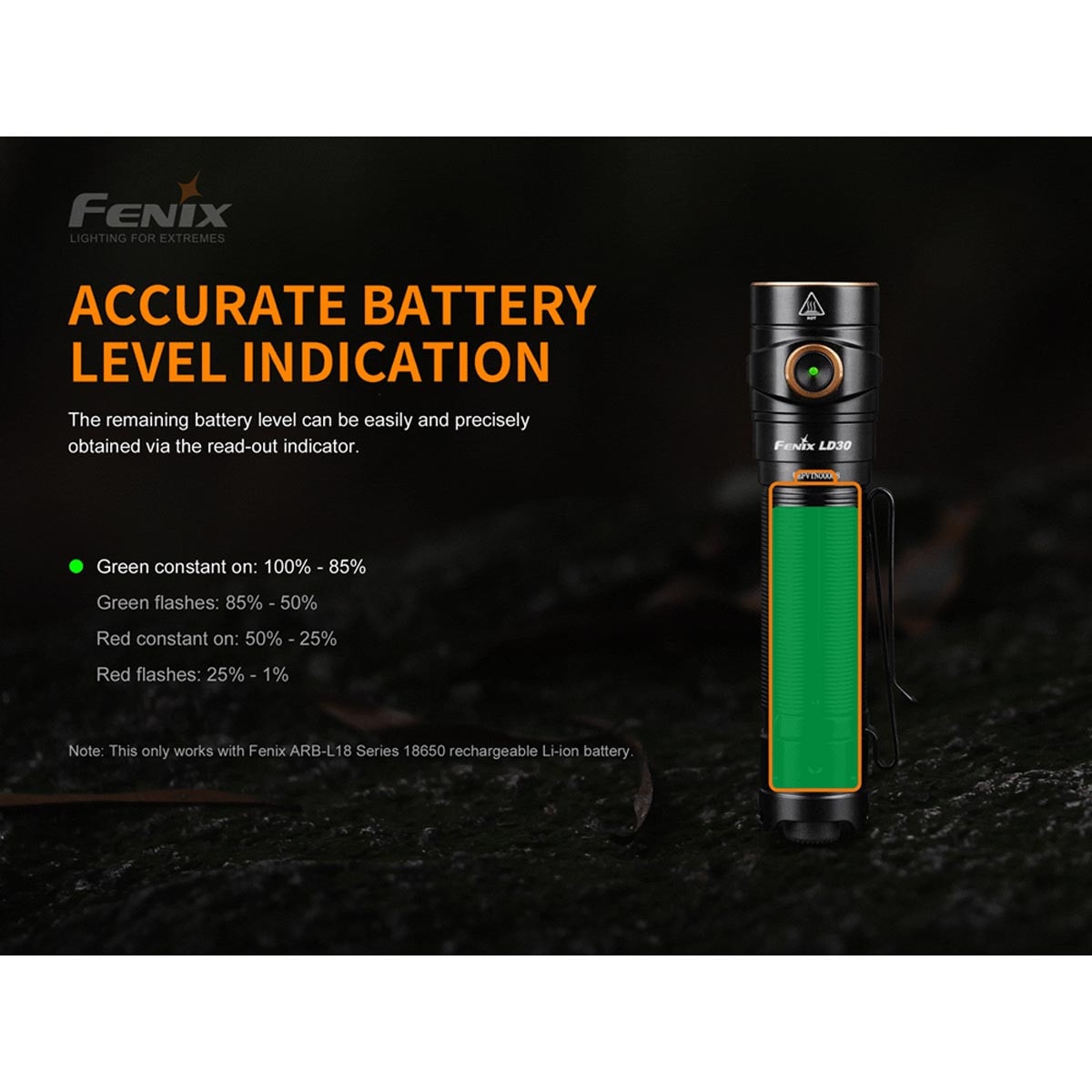

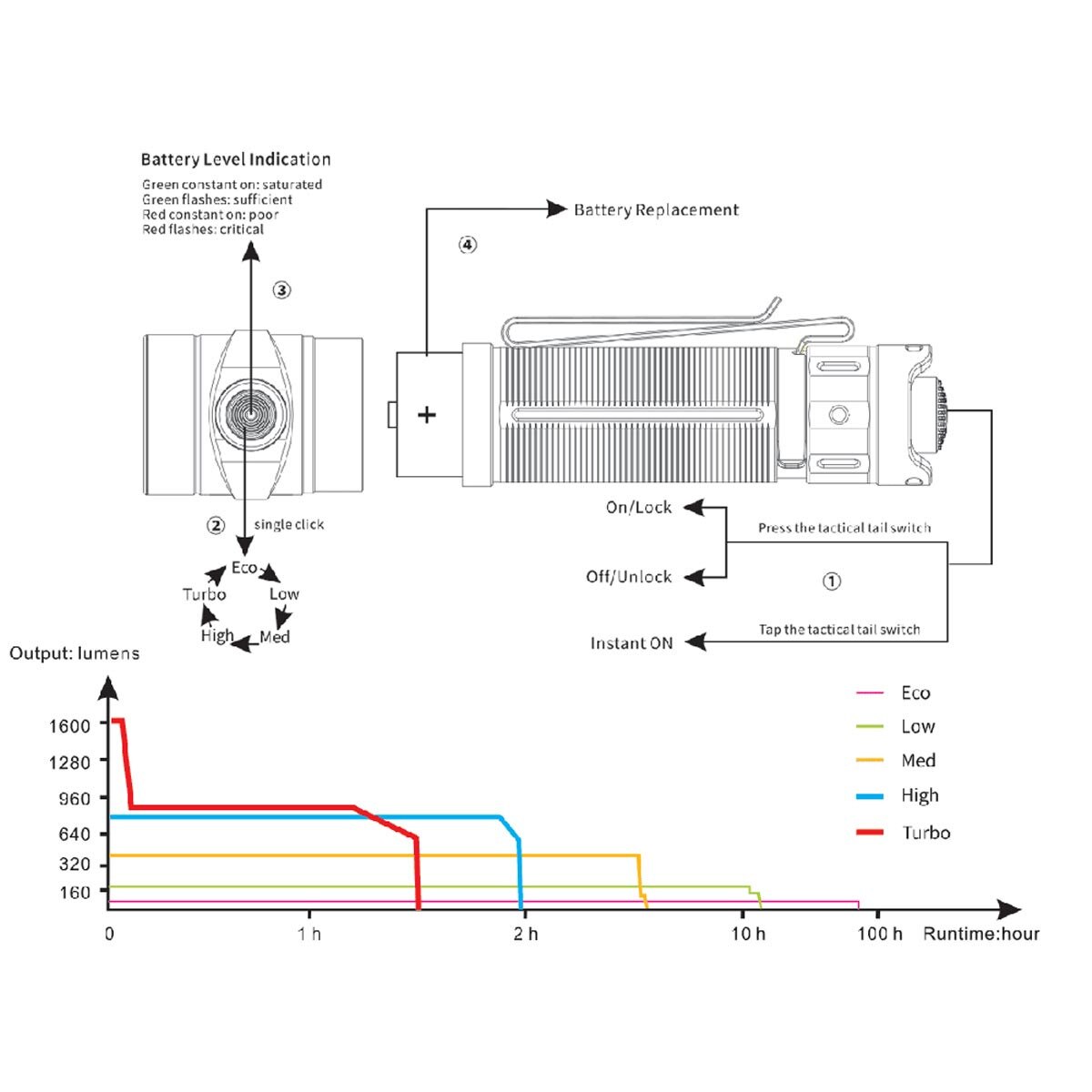

Boot-up Battery Level Indication

• Each time the light is turned on, the battery level indicator in the middle of the switch will automatically display the battery status for 3 seconds.

  Green constant on: 100% — 85%, saturated
• Green flashes: 85% — 50%, sufficient
• Red constant on: 50% — 25%, poor
• Red flashes: 25% — 1%, critical
• Note: This only works with Fenix ARB-L18 Series 18650 rechargeable Li-ion battery.

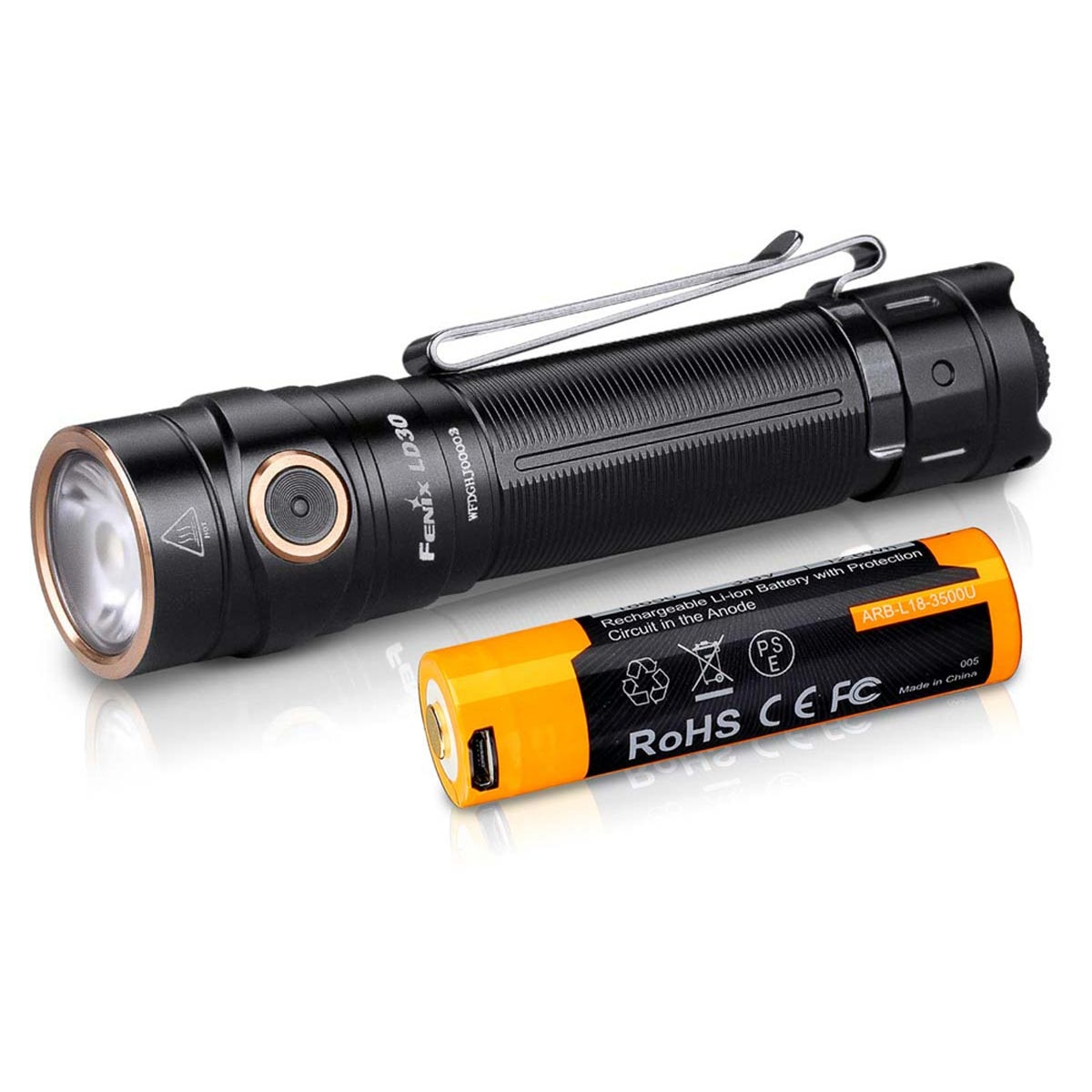

Battery Replacement

Unscrew the light body and insert the battery with the anode side (+) towards the light head, then screw the light body back on.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the battery level indicator blinks red to remind you to recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery level runs out.

Note: This only works with Fenix 18650 Li-ion battery.

Intelligent Downshift

Time-limited Downshift

After 5 minutes of maintenance, the brightness of the flashlight decreases by about 30 lumens every 6 seconds, and until to about 1200 lumens.

Voltage Downshift

When the voltage level drops below 3V, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. (After the downshifting, other output levels can be selected by single clicking the side switch, but if the battery voltage is still detected below 3V, the downshifting will begin after 1 second).
