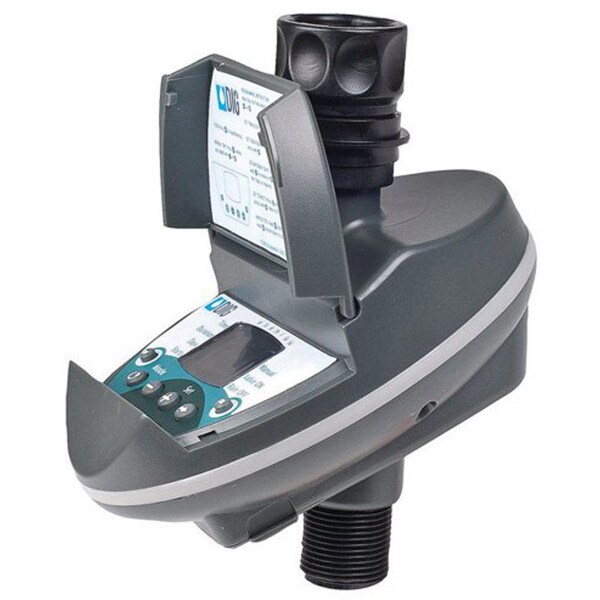

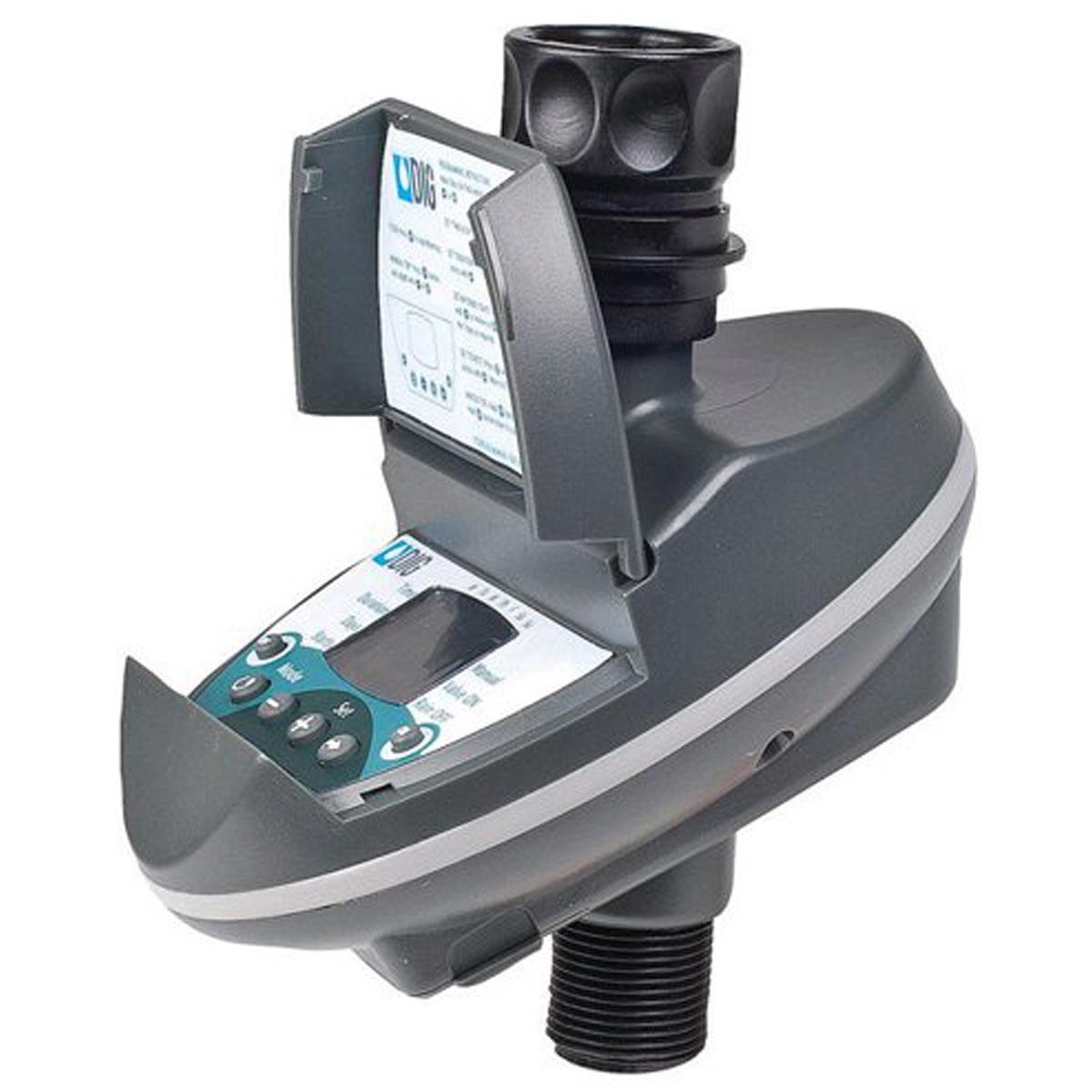

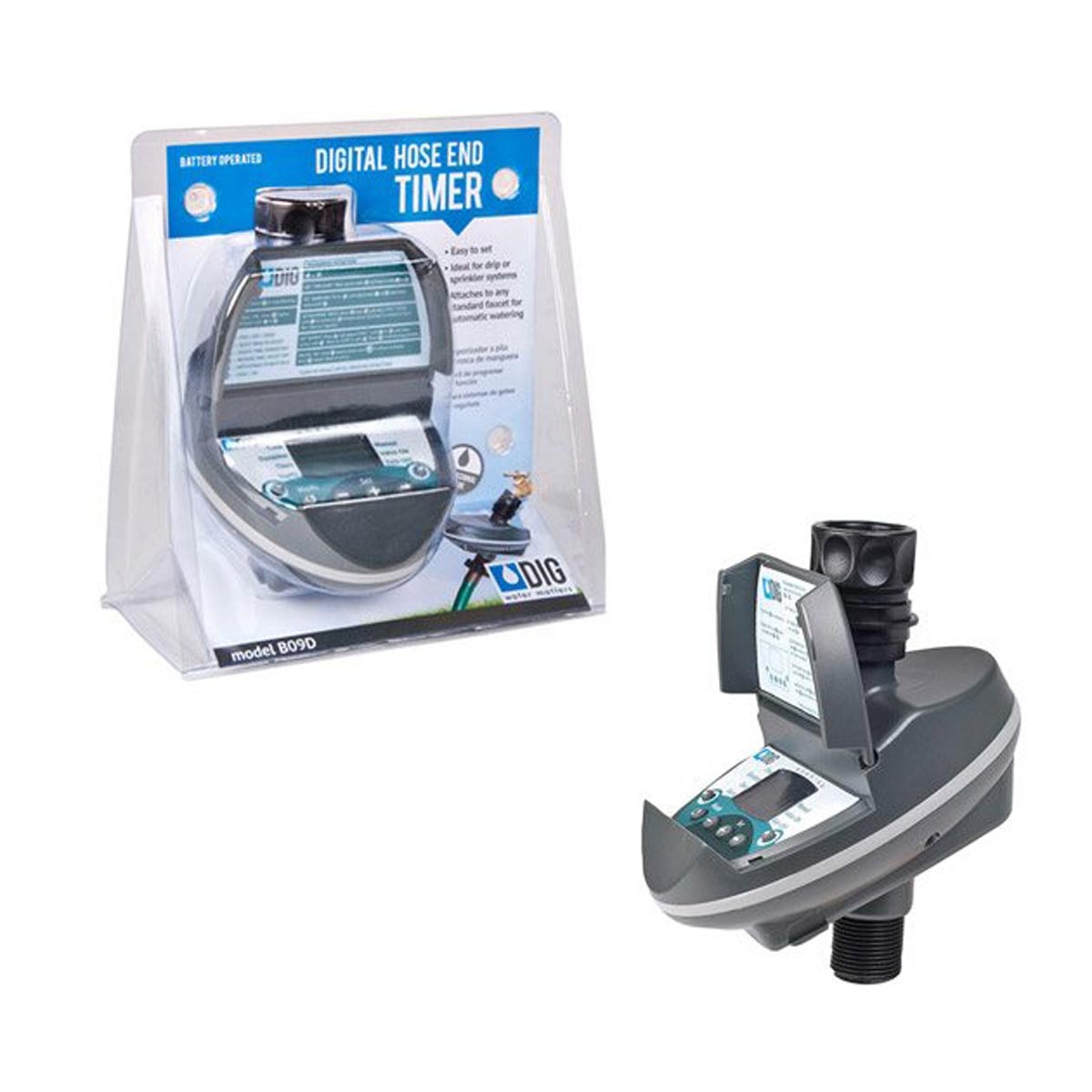

DIG Battery Powered Digital Hose End Timer (B09D)

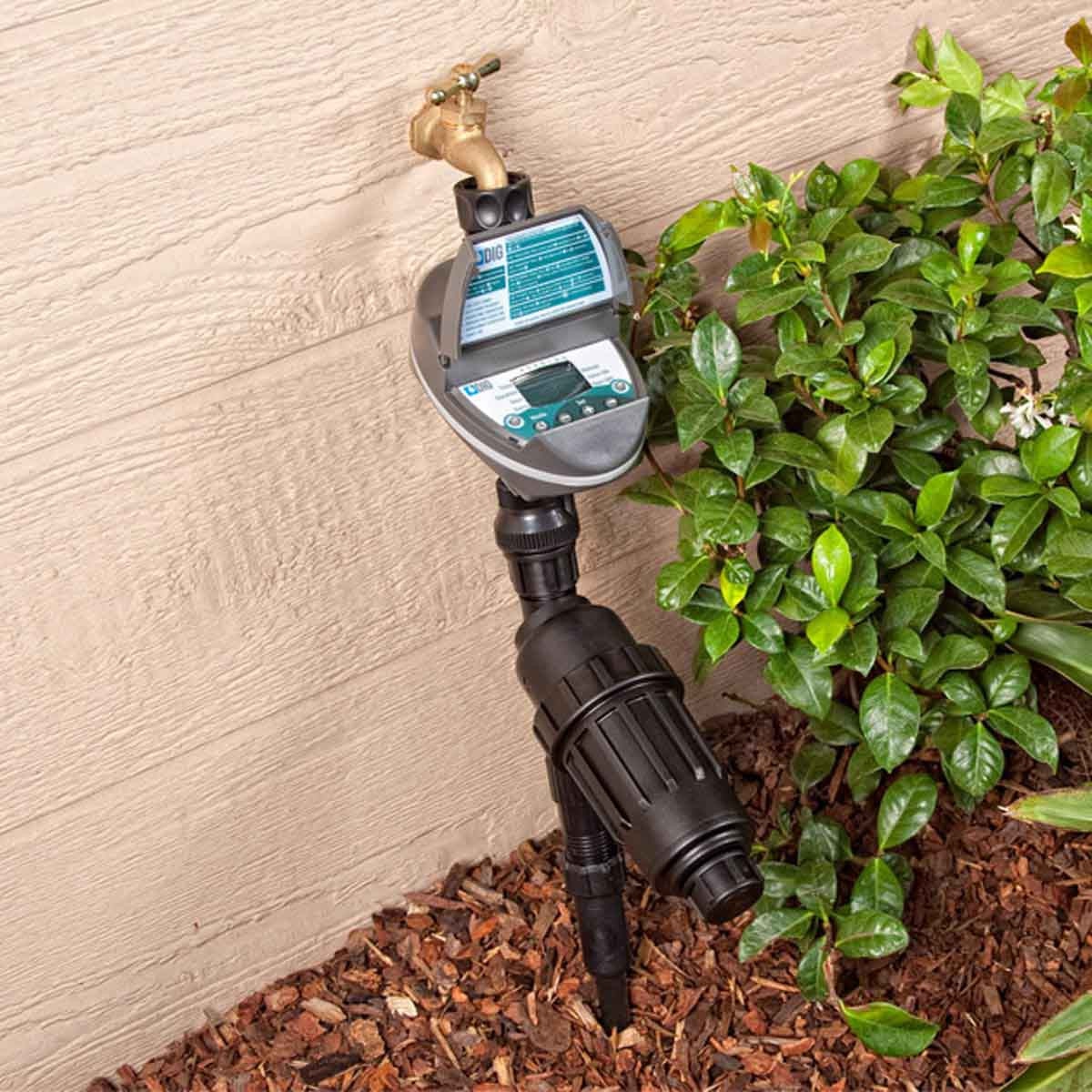

The B09D 3/4" Digital Hose End Timer, one in DIG's newest range of hose end timers, offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life with reliable operation. With higher flow rates at lower inlet pressures and a range of programming features, the B09D delivers a reliable and cost-effective solution for residential use. The timer has four start times per day with durations from 1 minute to 12 hours 59 minutes in an operating flow range of .5 to 6.3 gallons per minute, allowing use in a wide range of applications including drip irrigation or micro sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9-volt alkaline battery that can last for over a year.

Specifications:

• Operating pressure 10 PSI to 80 PSI (0.6 — 5.5 Bar)
• Flow rate up to 6.3 gpm at 30 PSI (24 L/PM at 2 Bar)
• Temperature range: 40°F to 125° F (3° C to 50° C)
• Power source: 9-volt alkaline battery (not included)
• Efficient internal DC solenoid
• Power consumption: 20 micro amps in standby mode
• Materials: body ABS, and inner parts of high-impact plastic
• Dimensions: 6" D X 4" W x 6.5" H ( 15.2 cm X 10.0 cm X 16.2 cm)

Programming Options

• Watering duration from 1 minute up to 12 hours and 59 minutes
• Duration can be set in one-minute increments
• Watering frequency: can be programmed in a seven-day watering calendar
• In weekly schedule the controller can be programmed to operate on any days of the week such as Monday, Wednesday, and Friday.
