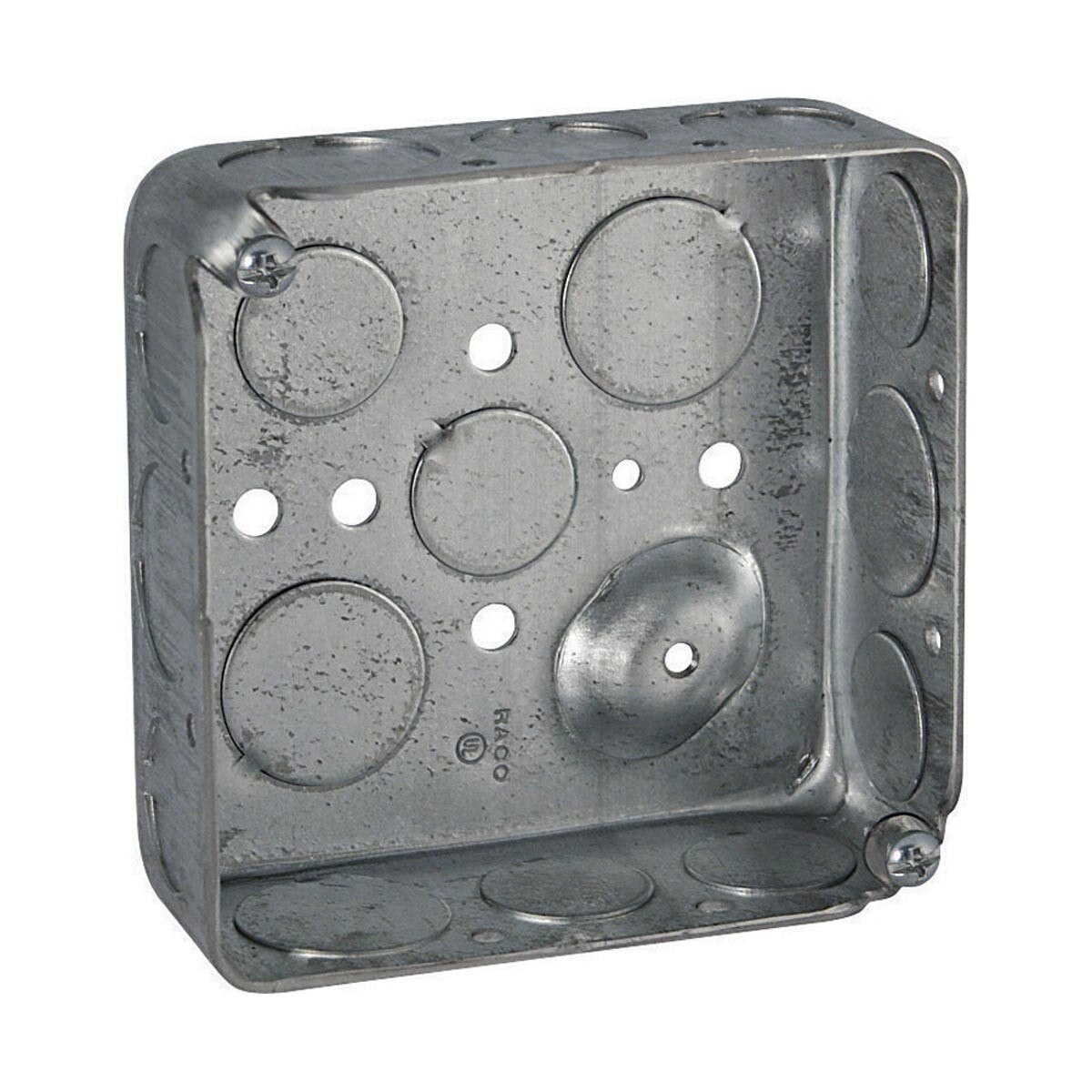

4 in. Square 1.5 in. Deep Drawn With Conduit Knock Outs Box
Details
- Boxes are installed in ceilings or walls for lighting fixtures, switches or receptacles
- For steel studs, the Box-Loc bracket mounts on either side of any depth stud
- Extension rings provide a means for adding additional cubic capacity or as an outlet box for surface conduit
- Quick installation on flat side of metal or wood studs
- 1/8 in. gauging tabs locate the box flush with the face of the stud in perfect position for a plaster (mud) ring
- Bracket is longer and wider than standard bracket to assure a rigid installation and to help prevent the box from being pushed into the wall during drywall installation
- Combination screw heads provide for faster installation
- RACO boxes may serve as fixture support for fixtures up to 50 pounds
- 1-1/2 in. deep
- 4 in. square
- Eight 1/2 in. side knockouts, four 3/4 in. side knockouts, three 1/2 in. bottom knockouts and two 3/4 in. bottom knockouts
