Bi-Fold Top Mount Pivot, 3/8 inch Pivot, 7/16 inch Base, 2 per package

SKU 100632
(0)No Reviews yet

Only available for Pickup

Select Store to check availability.

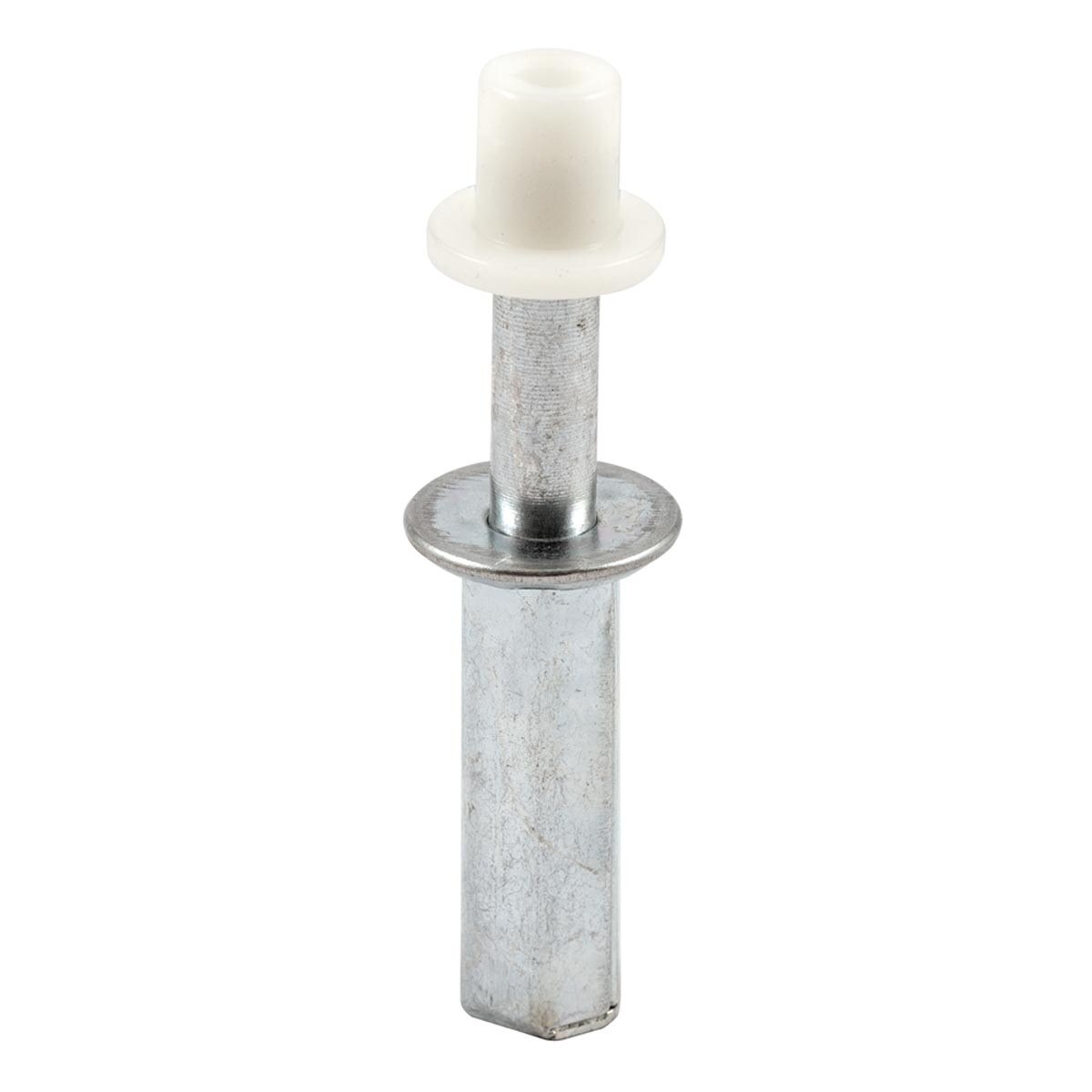

This is a Top mount bi-fold door pivot. Used on Acme and Cox doors, the spring loaded 3/8 inch pin inserts into the pivot bracket above creating a top pivot point for the bi-fold door. See N 6903 for the cap only or N 6546 & N 6547 for bottom pivots.


  • Top Pivot for Acme or Cox Bi-Fold Doors
  • Spring loaded Steel base

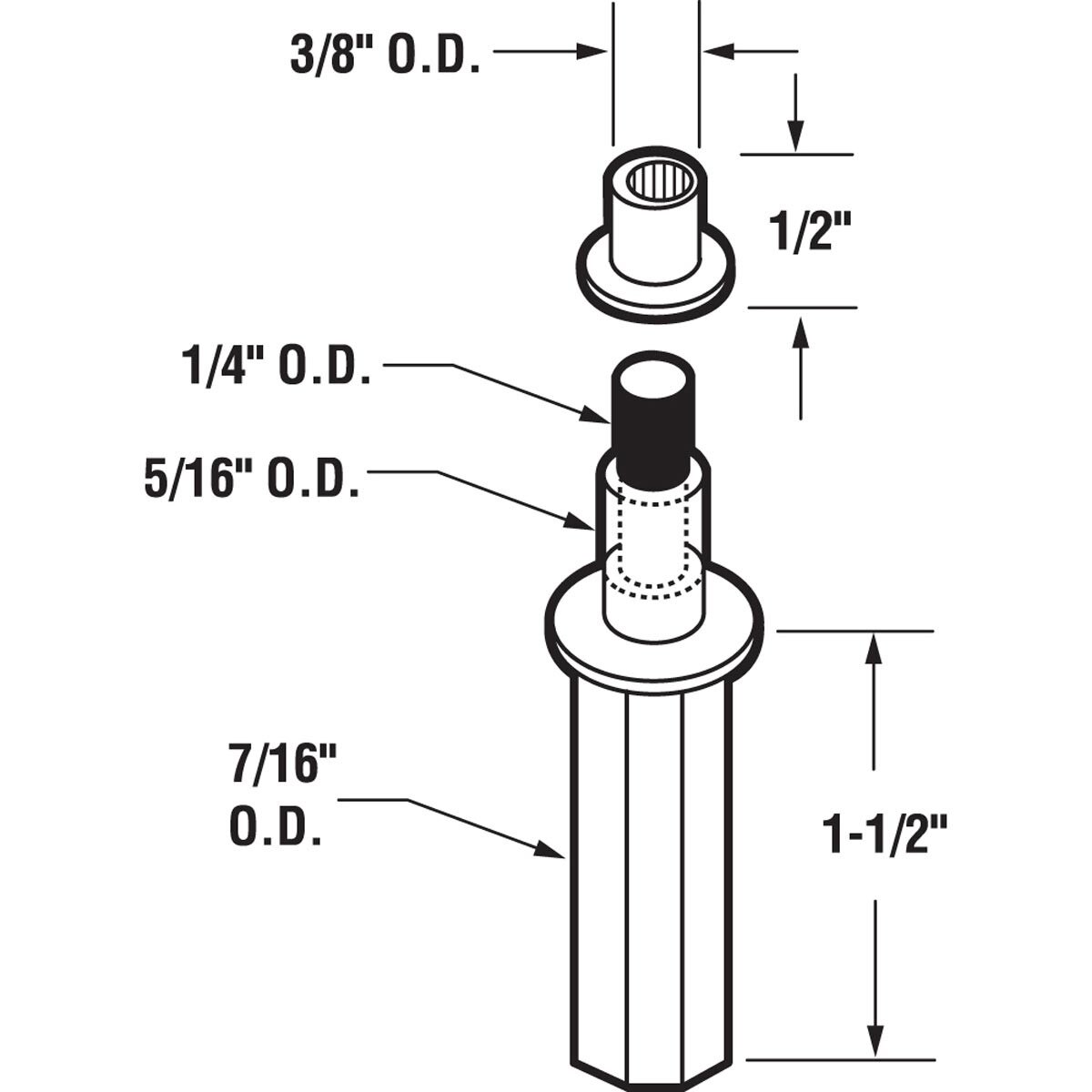

  • 7/16 inch Base
  • 3/8 inch nylon pivot cap
  • Supports up to 50 lbs.
  • No fasteners required
  • Easy to Install
